| 원래 장소: | 중국 선전 |
|---|---|
| 브랜드 이름: | VEGASHINE / OEM |
| 모델 번호: | VGS-BF1604003HD-J6412 |
| 최소 주문 수량: | 1개 단위 |
| 포장 세부 사항: | 판지 상자 |
| 배달 시간: | 3 내지 10 작업 일수 |
| 지불 조건: | T/T, 서부 동맹, MoneyGram |
| 공급 능력: | 달 당 1000 단위 |
| CPU: | 셀러론 J6412 쿼드 코어 | 숫양: | 2×DDR4 260PIN SO-DIMM 슬롯 |
|---|---|---|---|
| 표시하다: | HDMI + DP | 이더넷: | 4*인텔 i225/i226 LAN |
| COM: | 1*RJ45 직렬 포트 | USB: | 6×USB |
| 크기: | 178×126×55mm | 힘: | DC 12V-4A |

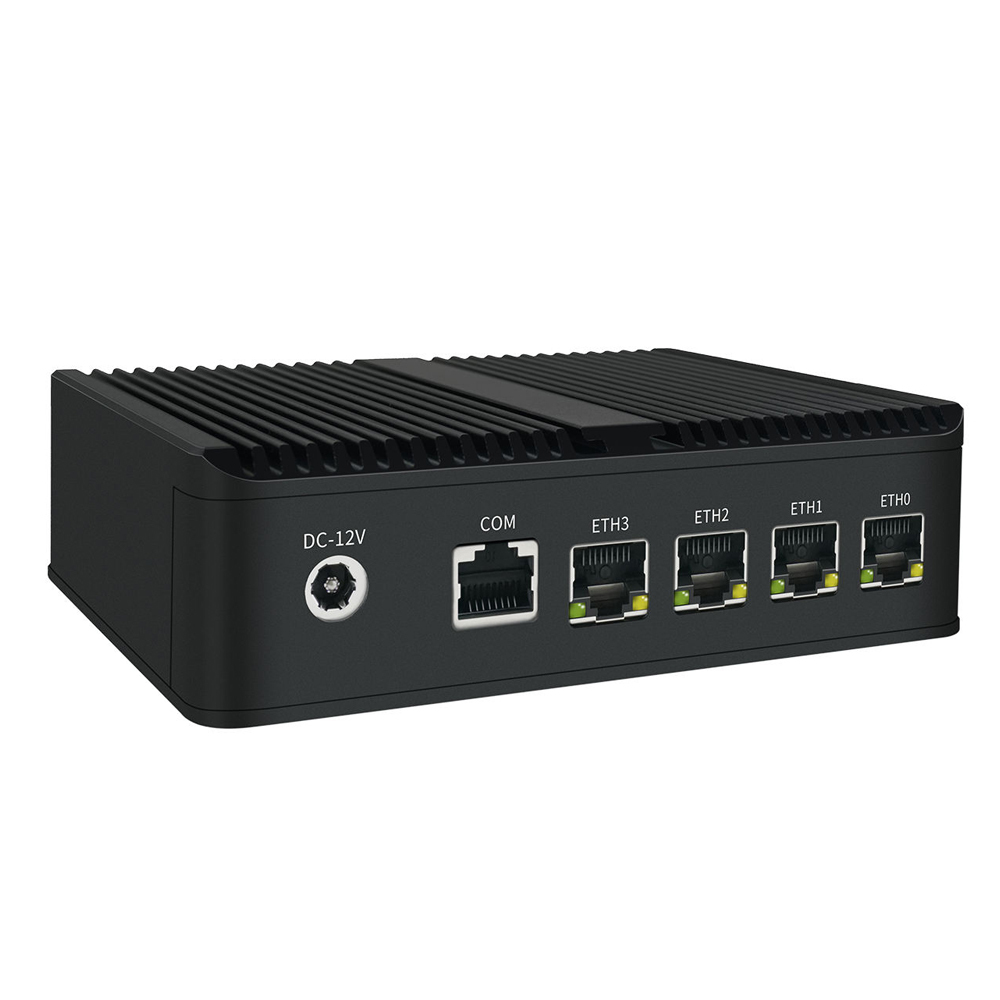

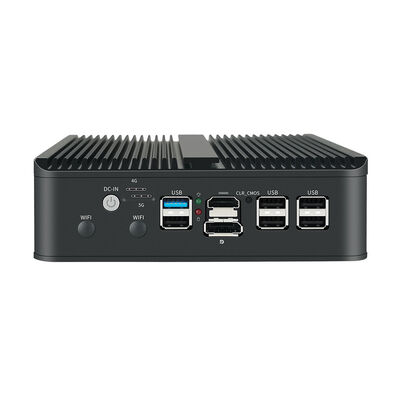

Intel ® J6412 cpu 4*2.5G LAN 6 USB Firewall appliance pFsense soft router fanless mini industry pc
Key Features
Aluminium alloy chassis
Celeron® J6412 quad-core quad-thread, main frequency: 2.00GHz
2×DDR4 260PIN SO-DIMM slots, support DDR4 3200, single stick max 32GB
1×SATA 3.0
1×M.2 (NVMe protocol),
1×RJ45 COM port
1×DP+HD interface
DC 12V-4A, 5.5×2.5mm barrel jack
Dimension: 136mm× 126mm × 40mm
Package Dimensions 20 × 17 × 12 (cm)
Specifications
|
Model No. |
VGS-BF1604003HD-J6412 |
|---|---|
| Chassis Color | Black |
| Material | aluminium alloy chassis |
| Installation | Desktop |
| Processor | Celeron® J6412 quad-core quad-thread, main frequency: 2.00GHz |
| Chipset | Intel® J6412 (optional J6413) |
| BIOS | AMI EFI BIOS |
| Memory | 2×DDR4 3200MHz notebook memory slots, max. 32GB, SODIMM |
| Storage |
1×SATA 3.0 |
| Graphics | Integrated Intel® HD Graphics 600 |
| Display Interfaces | 1×HDMI + 1×DP, supporting synchronous/asynchronous display |

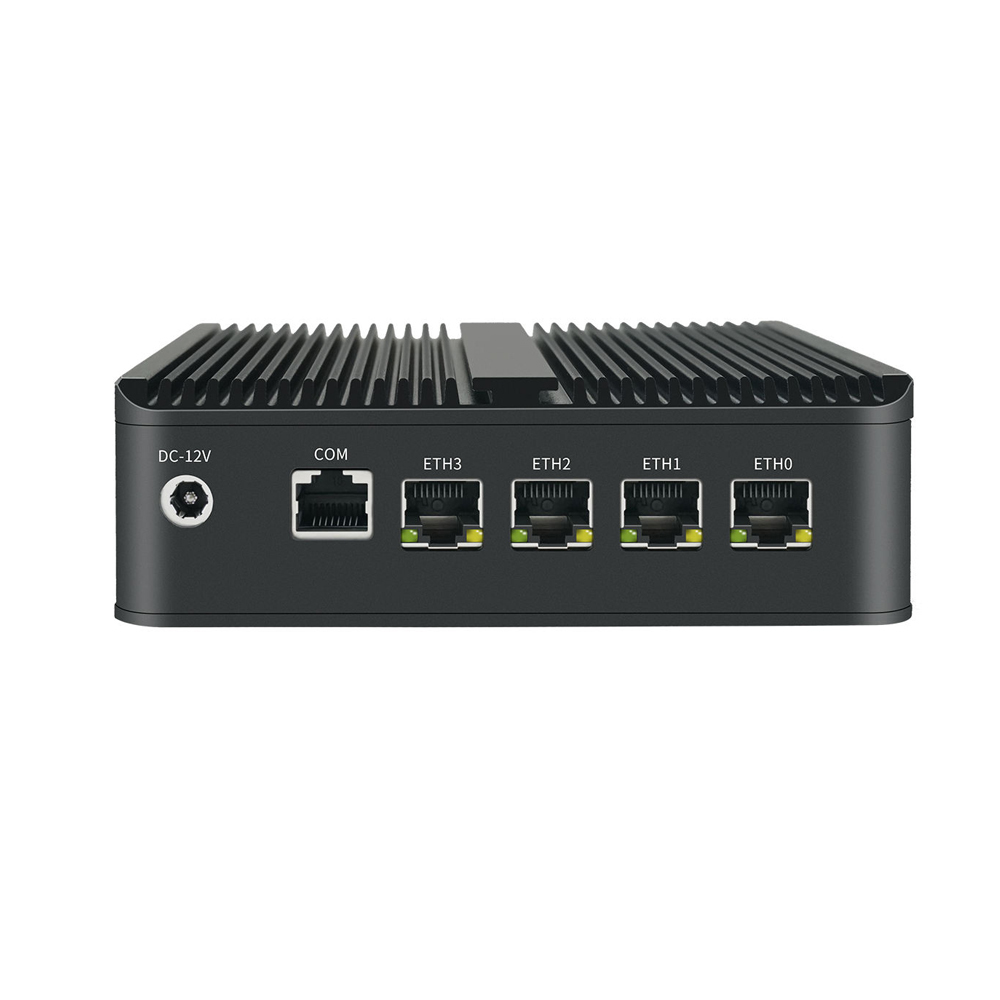

| Front I/O Ports | 4×2.5G Ethernet ports, 1×DC power adapter port |

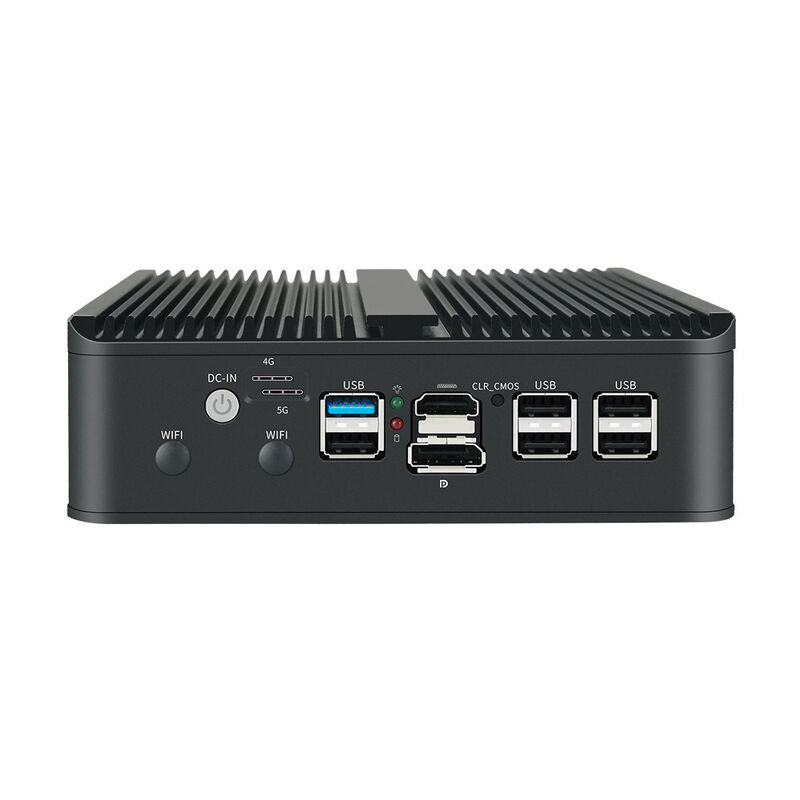

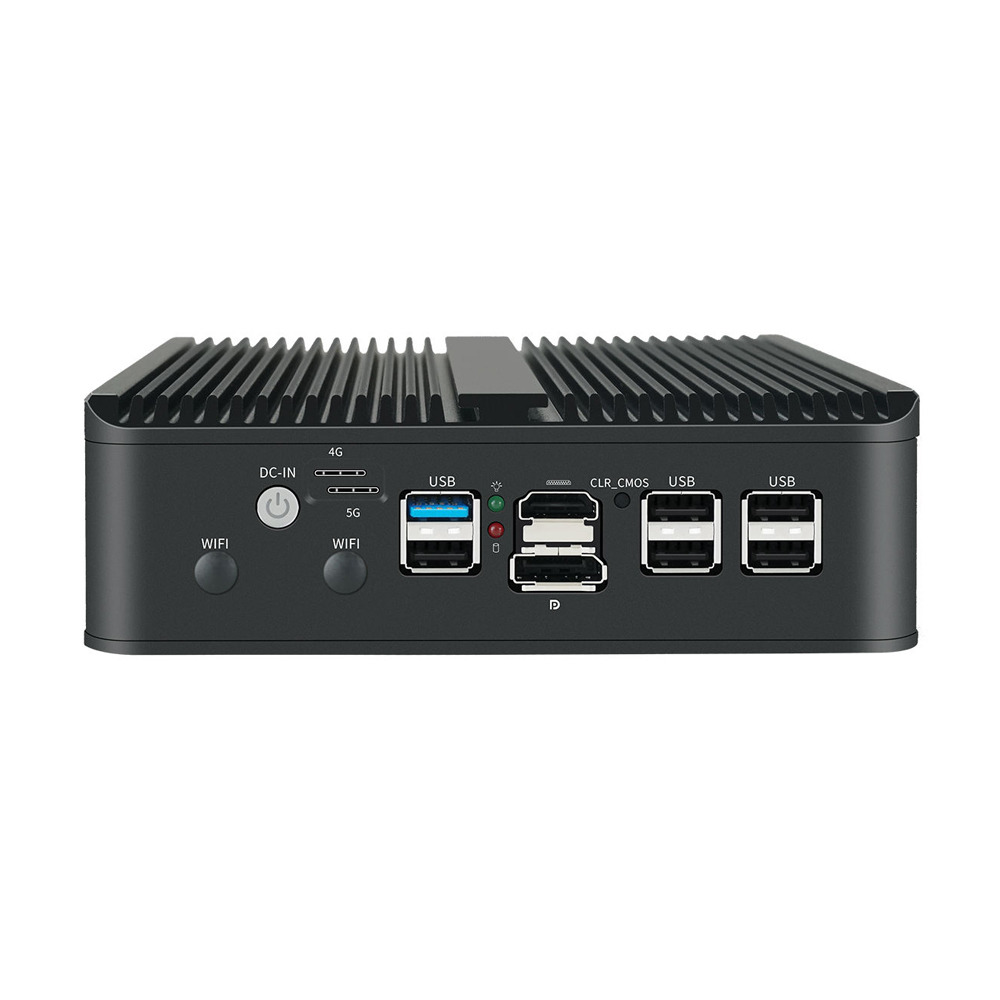

| Rear I/O Ports | 1×USB3.0, 5×USB2.0, 1×HDMI (with audio output), 1×DP, 1×power button, 1×power/HDD LED indicator, 1×clr-cmos button, 1×4G SIM slot, 1×5G SIM slot |
| Expansion Slots | 1 full-length MINI-PCI-e (supports USB-signal 3G/4G modules), 1×M.2 2242 (supports 5G modules) |
| Network Interfaces | 4×Intel® I226 Gigabit Ethernet NICs, supporting diskless boot and Wake-on-LAN |
| Other Features | Power-on at power restore, scheduled power-on, Wake-on-LAN, PXE boot, watchdog timer |
| Power Supply | DC 12V-4A, 5.5×2.5mm barrel connector |
| Safety Certifications | CE, CCC, FCC, RoHS |
| Dimensions | 136 × 126 × 40 (mm) |
| Weight | 1.25 kg (complete unit), 0.75 kg (barebone unit) |
| Package Dimensions | 20 × 17 × 12 (cm) |
| Operating Temperature |
0 ~ +50℃(with commercial HDD), -20℃~ +50℃(with industrial SSD), with air flow |
| Humidity | 5 ~ 90% relative humidity, non-condensing |
| Operate System | Support Pfsense ,Linux, iKuai, LEDE, Openwrt, Panabit, Smart6, Win 7/8/10 etc. |
