| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | VEGASHINE / OEM |
| 모델 번호: | VGS-F10206041J-H770 |
| 최소 주문 수량: | 1개 단위 |
| 포장 세부 사항: | 판지 상자 |
| 배달 시간: | 3 내지 10 작업 일수 |
| 지불 조건: | T/T, 서부 동맹, MoneyGram |
| 공급 능력: | 달 당 1000 단위 |
| 차대: | 고품질 알루미늄 시트 섀시 | 차원: | 430mm*470mm*45mm |
|---|---|---|---|
| 섀시 색상: | 검은색 | CPU: | Intel® 12/13/14세대 Core™ i3/i5/i7 지원 |
| 메모리: | 4*DDR5 LO-DIMM, 최대 지원 128GB | 기가비트 LAN: | 6* 인텔® I226V 2.5G LAN 4*XL710 10G 광 포트 |

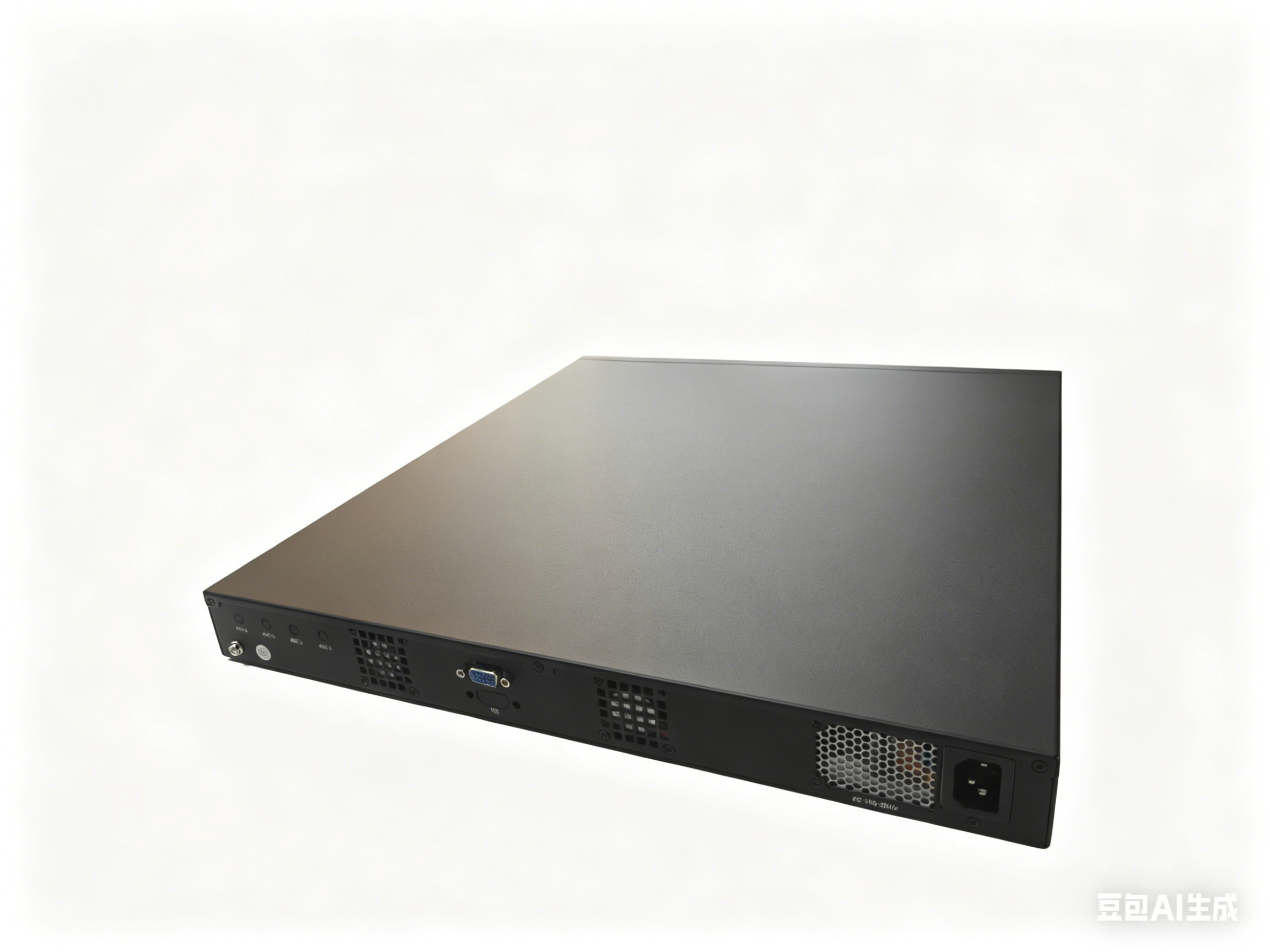

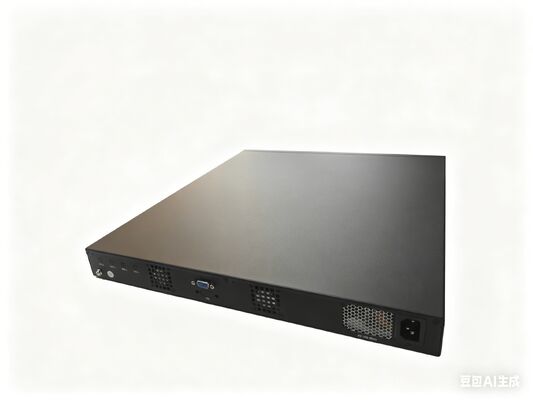

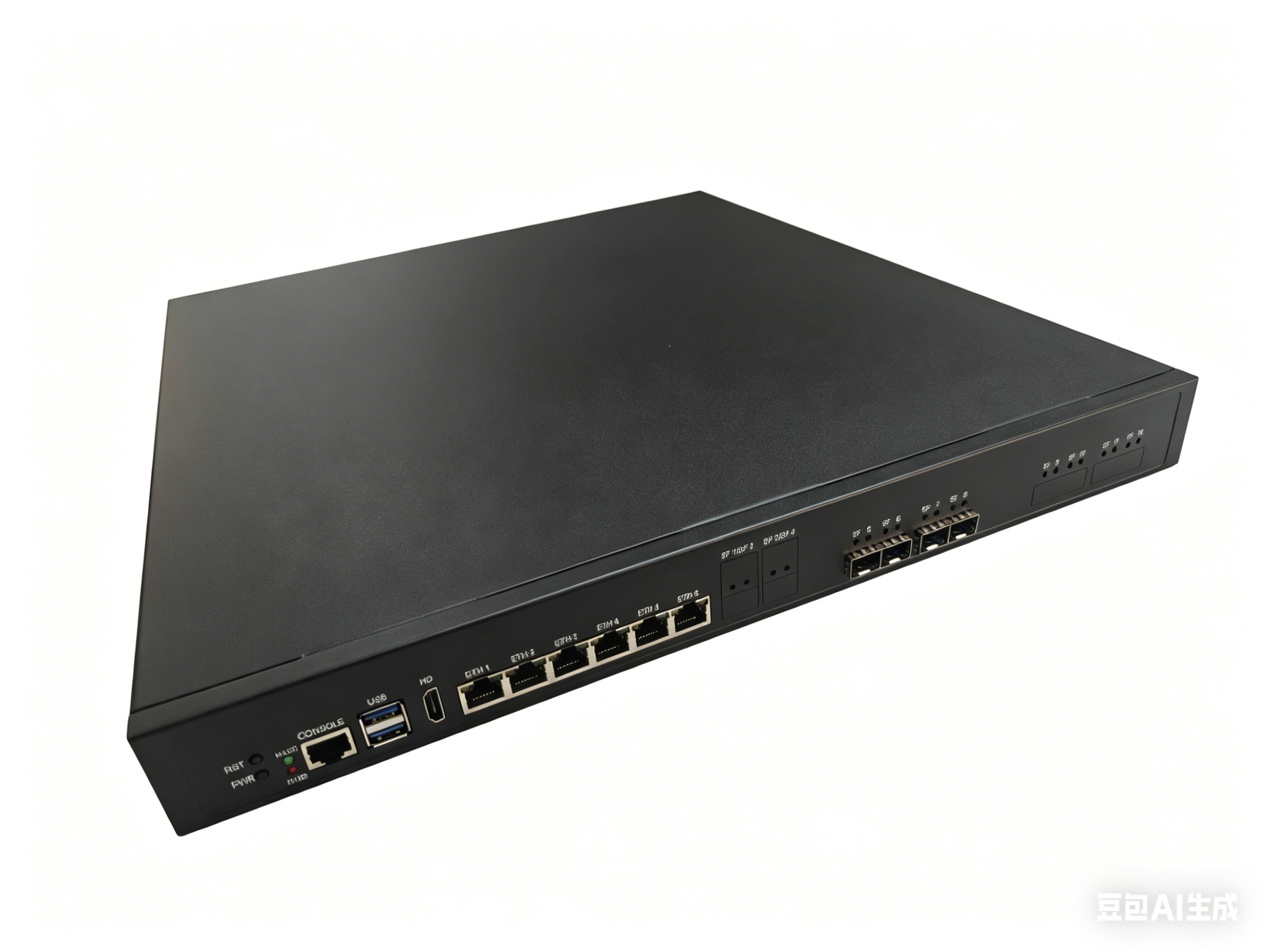

1U rackmount Intel® H770 6*2.5G LAN 4*10G SFP fiber optical Firewall Appliance support pFsense
Key Features
Support Intel® 12/13/14th Generation Core™ i3/i5/i7
Support 1*VGA/HDMI display output
4*DDR5 LO-DIMM,MAX support 128GB
Support 3*SATA3.0+1*SAS(4*SATA)+1*M.2 NVME/SATA
6*Intel I226V 2.5G electrical ports
4*XL710 10G optical ports
1* CISCO standard serial port console
2* USB3.0
1*M.2 support 4G/5G
1*M.2 support WIFI6
ATX PSU AC 110V ~ 240V
Dimension : 430mm*470mm*45mm
Paper box : 550 mm *560 mm *145mm
High quality galvanized steel sheet chassis
1U standard rack mounting method
Specifications
| Model No. | VGS-F10206041J-H770 | |
| Chassis | Color | Black |
| Dimension | 430mm*470mm*45mm | |
| Structure | 1U Standard chassis | |
| Material | High quality galvanized steel sheet | |
| Installation | 1U standard rack mounting method | |
| Platform | Processor | Support Intel® 12/13/14th Generation Core™ i3/i5/i7, Pentium®, Celeron® CPU,FCLGA1700 |
| Chipset | Adopt Intel® H770/H610/H660/B660 | |
| Graphics |
Integrated Intel® HD Graphics support 1*VGA/HDMI display output |
|
| Storage | Memory | 4*DDR5 LO-DIMM,MAX support 128GB |
| HDD | 3*SATA3.0+1*SAS(4*SATA) | |
| SSD | 1*M.2 NVME/SATA | |
| Audio | Audio | N/A |
| Expansion | WiFi /4G /5G |
1*M.2 support 4G/5G,1*SIM 1*M.2 support WIFI6 |
| Front I /O | Serial Port | 1* CISCO standard serial port console |
| USB | 2* USB3.0 | |
| LAN |
6*Intel I226V 2.5G electrical ports 4*XL710 10G optical ports Support bypass 2x segment, LAN1/2 & 3/4 (Optional) |
|
| SFP | Support 4*10G SFP(Optional)+2/4*10GSFP(Optional)+2/4*10G SFP(Optional) | |
| LED | 1* HDD LED, 1* Power LED | |

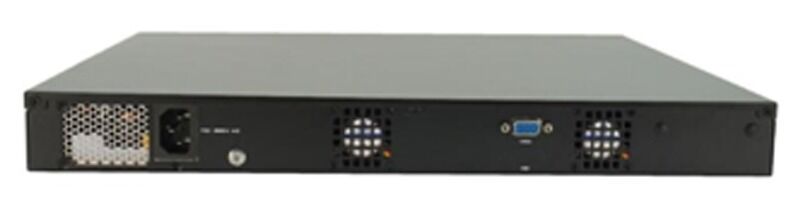

| Back I/O | Display | 1*VGA/1*HDMI(default VGA) |
| Power Interface | 1* ATX Power Interface | |
| Power Supply | Input |
ATX PSU AC 110V ~ 240V |
| Reliability | Operating Temp. | -10℃~60℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 10/11, Linux, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos, Pfsense, iKuai, WayOS etc. | |
